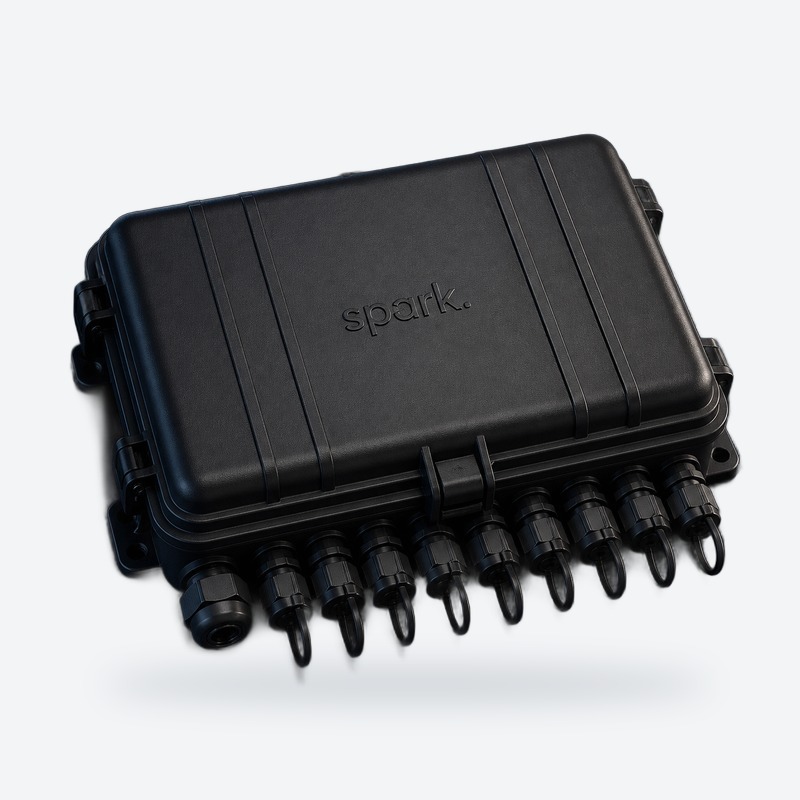

SPARK END Box
Last box in the pre-connectorised chain, splitting fibre to 8 or 16 subscribers.
Manufactured to SPARK specification.
- Last box in the pre-connectorised chain.
- 1:8 PLC split, or 1:16 in the high-density version.
- IP68 / IK10 protection.
- Compact 200 × 175 × 80 mm body.
- Manufactured to SPARK specification.
IP68 / IK10Protection
1:8 · 1:16PLC split
200×175×80Size (mm)
| Dimensions | 200 × 175 × 80 mm |
|---|---|
| Configuration | 1 in · 8 drop |
| Splitter — low-density | 1:8 PLC |
| Splitter — high-density | 1:16 even PLC |
| Protection | IP68 / IK10 |
End of each distribution chain, splitting fibre to 8 or 16 subscribers.
- Network position: Distribution (pre-connectorised ODN)
- Solutions: Plug & Play
- Turnkey stages: Manufacturing & supply, Build & install

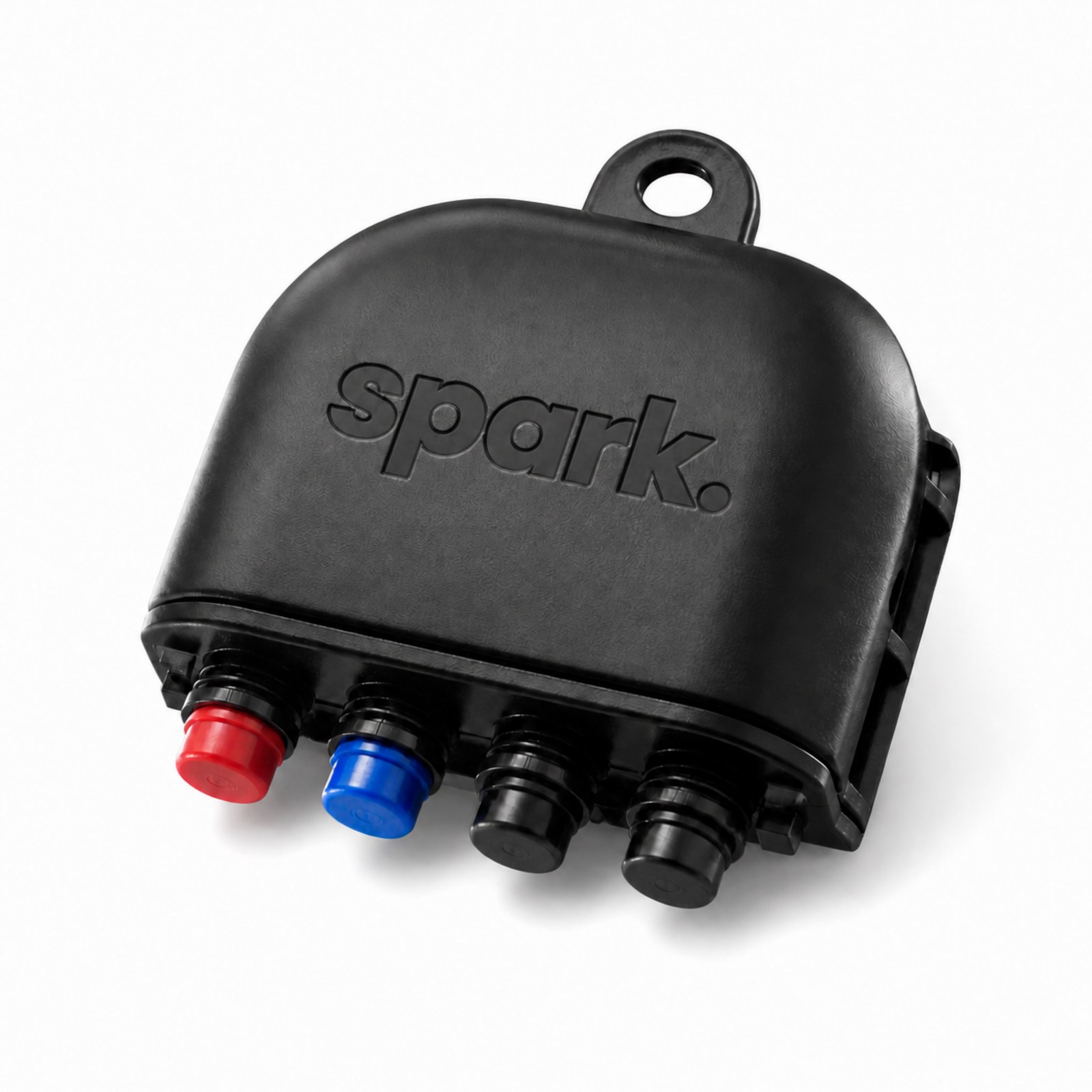

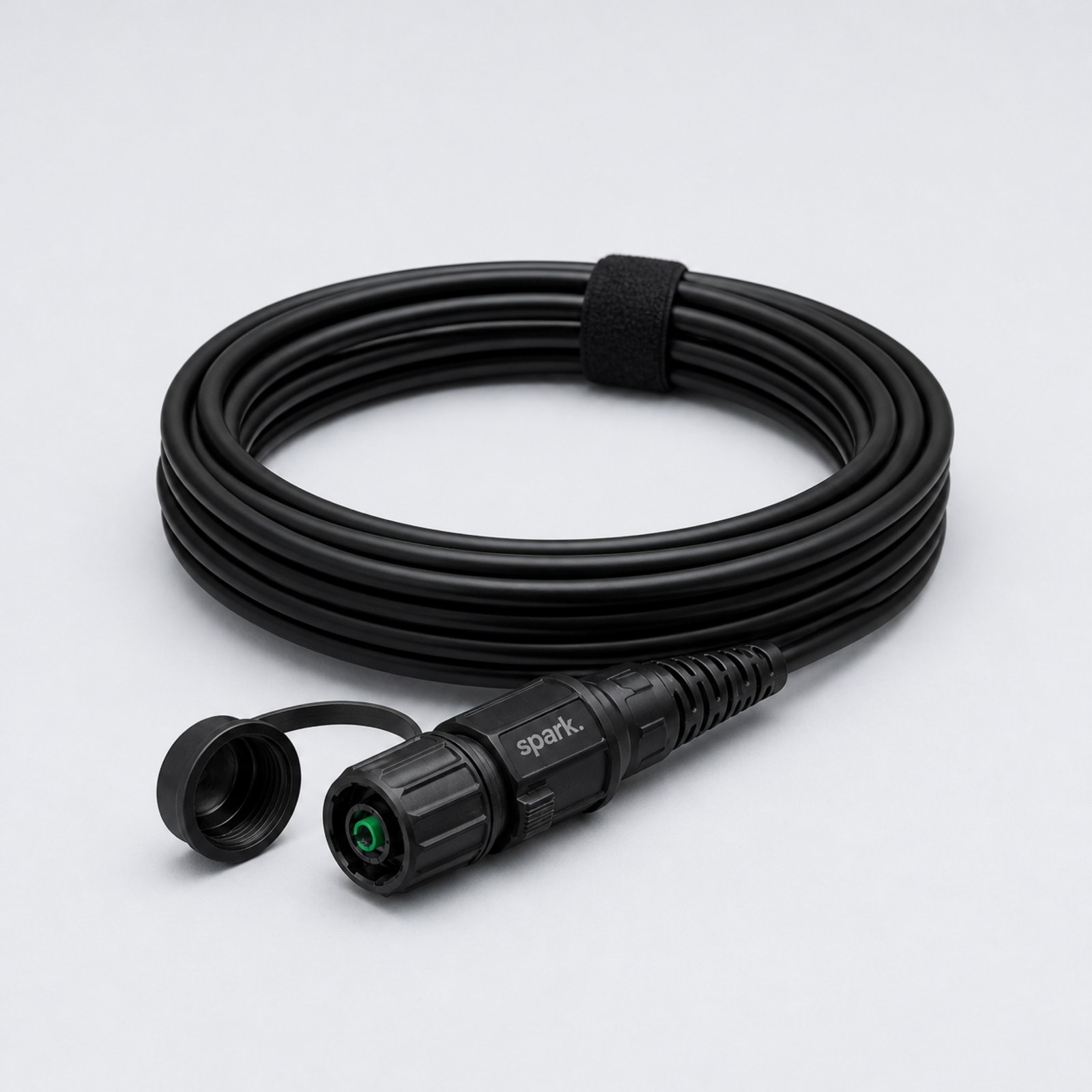

- Used with: Sub Box, Hardened Pre-Connectorised Drop Cable
