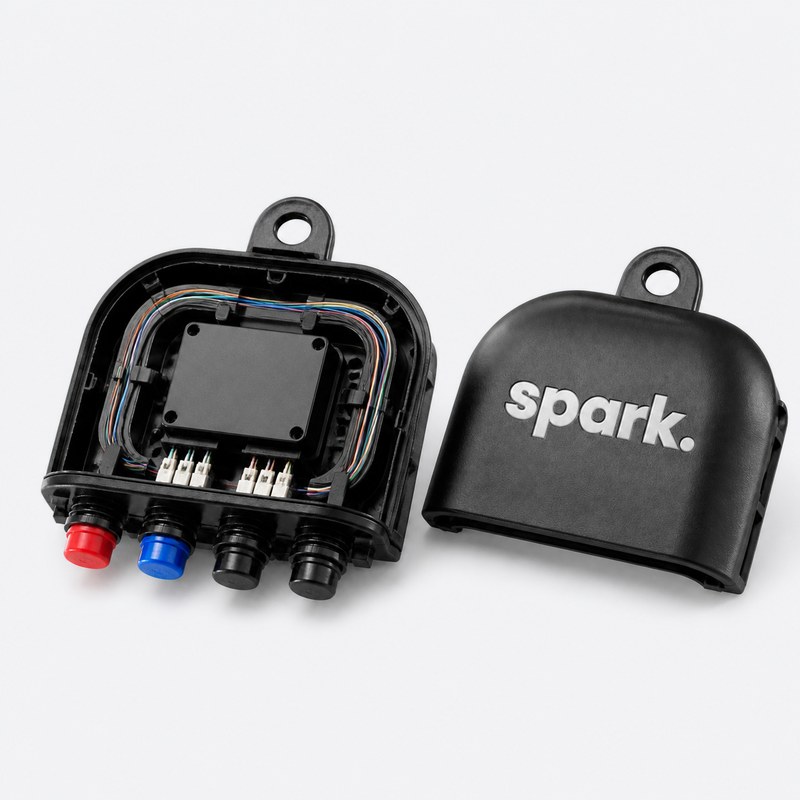

SPARK Sub Box
Compact sub-distribution box for last-mile drop connectivity.
Manufactured to SPARK specification.
- Middle box of the pre-connectorised chain.
- 1:9 uneven PLC split, or 1:17 in high density.
- 8 or 16 drop outputs plus one cascade.
- IP68 (high-density IP68 / IK10).
- Manufactured to SPARK specification.
IP68Ingress protection
1:9 · 1:17Uneven PLC split
8 · 16Drop outputs
| Dimensions — low-density | 200 × 175 × 80 mm |
|---|---|
| Dimensions — high-density | 210 × 199 × 107 mm |
| Configuration — low-density | 1 in · 1 cascade · 8 drop |
| Splitter — low-density | 1:9 uneven PLC |
| Splitter — high-density | 1:17 uneven PLC |
| Ingress protection | IP68 (high-density IP68 / IK10) |
Between the HUB and END boxes, serving subscribers and passing the signal down the chain.
- Network position: Distribution (pre-connectorised ODN)
- Solutions: Plug & Play
- Turnkey stages: Manufacturing & supply, Build & install

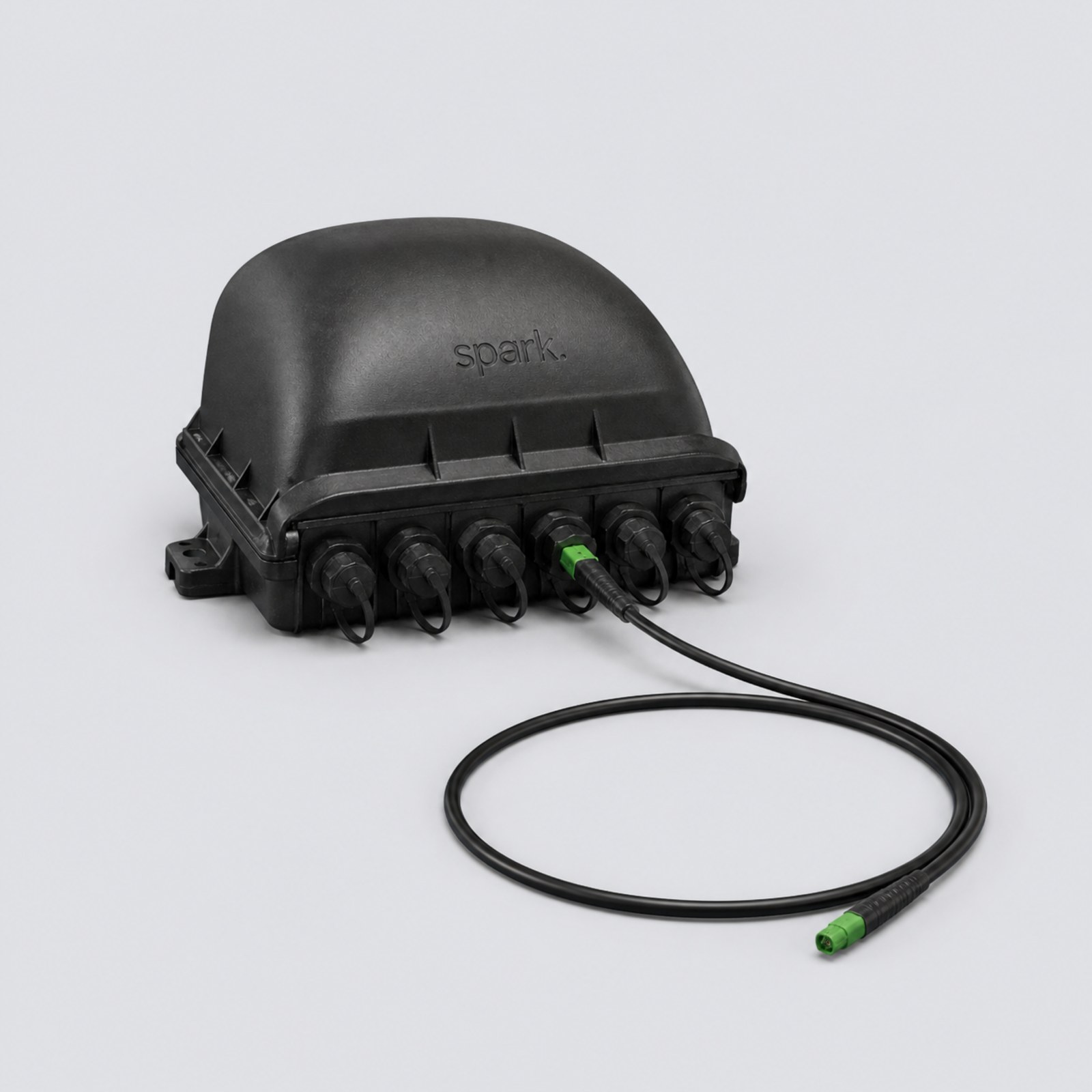

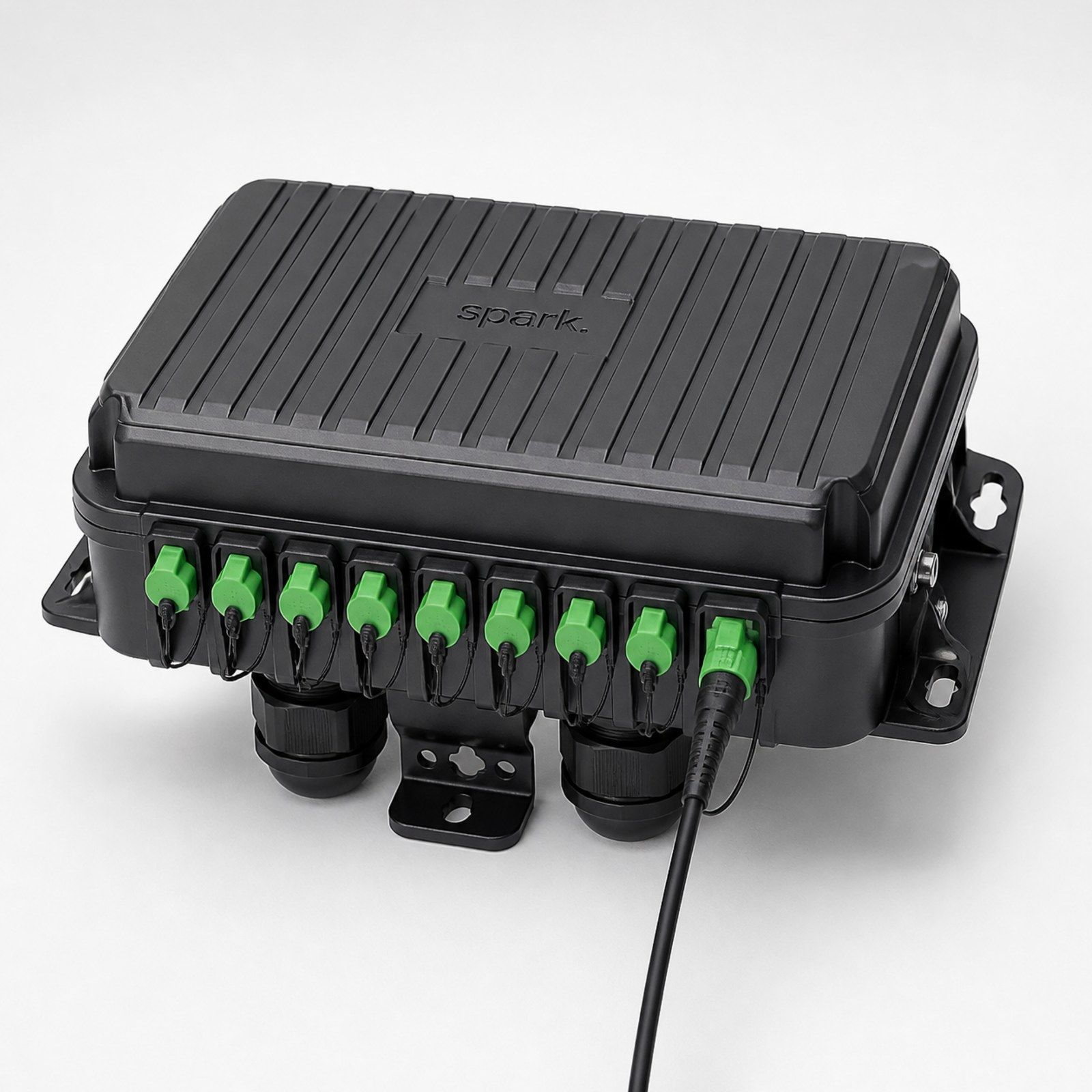

- Used with: Hub Box, END Box, Domed Sub Box
