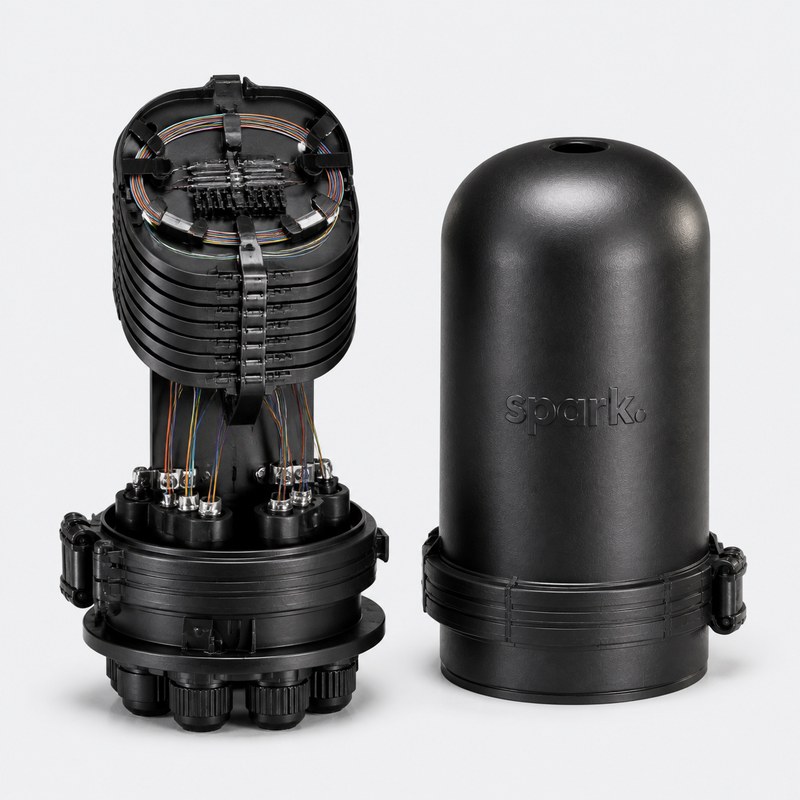

SPARK Dome Splice Closure
Dome-type splice closure for aerial, duct and buried fiber joints.
Manufactured to SPARK specification.
- Dome-type closure rated IP68.
- 5 or 7 cable ports for Φ8–22 mm cables.
- Up to 8 splice trays: 12–48F bunchy or 72–144F ribbon.
- Screw-locking PP or PC body.
- Manufactured to SPARK specification.
IP68Ingress protection
5 · 7Cable ports
Up to 144FRibbon capacity
| Size | Φ194 × 499 mm · Φ253 × 550 mm |
|---|---|
| Cable ports | 5 / 7 |
| Cable diameter | Φ8–22 mm |
| Splice trays | 4 / 8 (max) |
| Tray capacity | 12–48F bunchy · 72–144F ribbon |
| Material | PP or PC plastic |
| Opening | Screw locking |
| Ingress protection | IP68 |
Aerial, duct and buried fiber joints on feeder and distribution routes.
- Network position: Feeder & cabinet
- Turnkey stages: Manufacturing & supply, Build & install, Support & maintenance
- Used with: Inline Splice Closure, Hub Box
