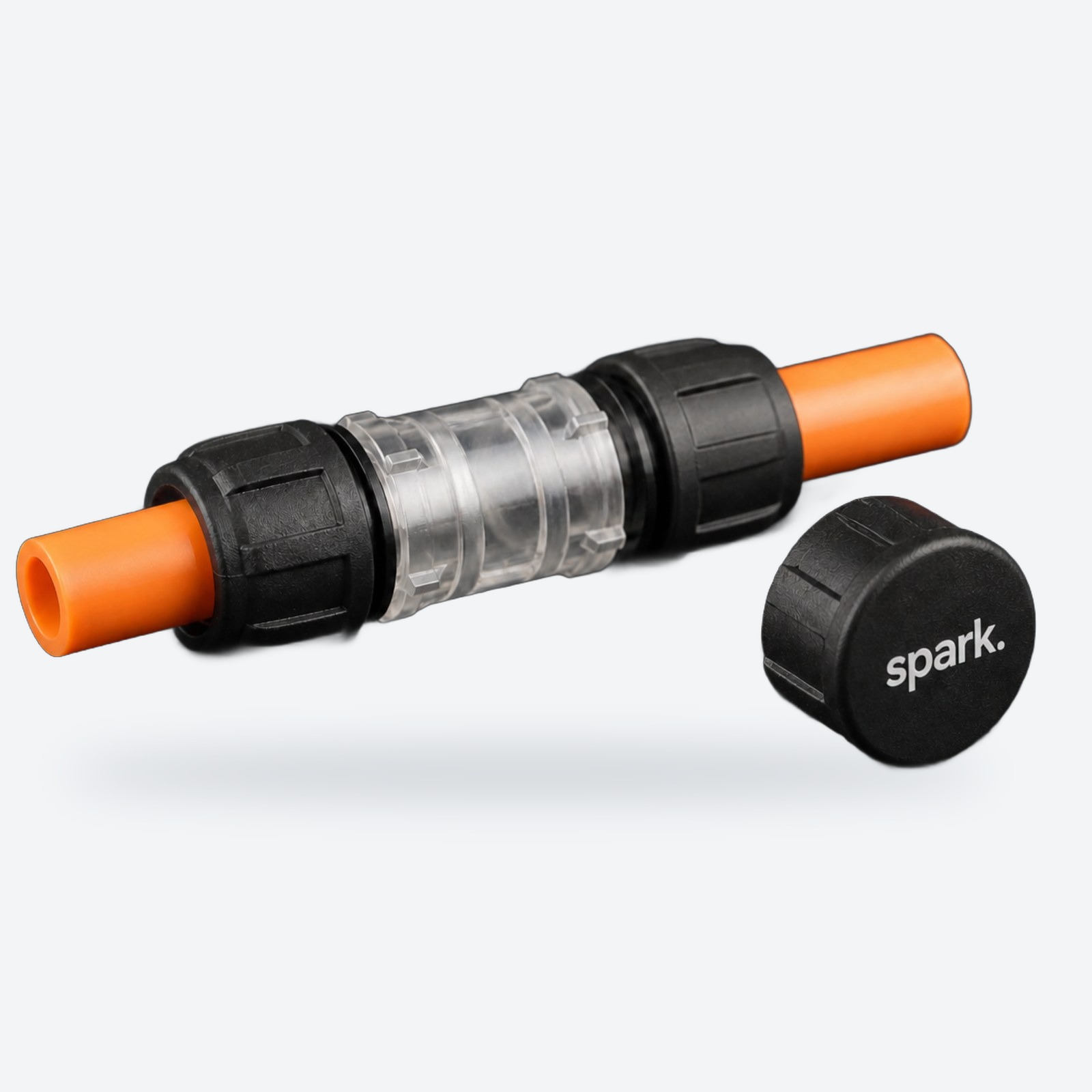

SPARK Micro-Duct Push-Fit Connector & End Cap
Push-fit straight connector and end cap for joining and sealing micro-ducts.
Manufactured to SPARK specification.
- Tool-free push-fit jointing in seconds.
- Internal O-ring seal on a clean-cut duct end.
- Grip tightens under pull; collet release for removal.
- End cap blocks water and dust in unused tubes.
- Manufactured to SPARK specification.
Tool-freePush-fit jointing
O-ringInternal seal
−30…+70 °CDuct operating temp.
| Function | Push-fit straight connector joining two micro-ducts |
|---|---|
| Sealing | Internal O-rings seal on a clean-cut duct end |
| Retention | Internal teeth and tapered body grip under pull |
| Release | Collet pressed inward to remove the duct |
| End cap | Seals unused tubes against water and dust |
| Sizes | Matched to micro-duct diameters |
| Installation | Tool-free, a few seconds per joint |
| Duct operating temperature | −30 °C to +70 °C (duct spec) |
| Duct fire / weathering | B2 to DIN 4102-2 · 100 h to ASTM G153 (duct spec) |
Micro-duct routes in feeder, distribution and in-building builds.
- Network position: Supporting infrastructure
- Solutions: Air-Blown Fiber
- Turnkey stages: Build & install
- Used with: MDU Distribution Box IP68, FTTH Drop Cable
